Alloy Steel High Impact Roadheader Pick Bits High Toughness

Alloy Steel High Impact Roadheader Pick Bits High Toughness

  • Alloy Steel High Impact Roadheader Pick Bits High Toughness
  • Alloy Steel High Impact Roadheader Pick Bits High Toughness
  • Alloy Steel High Impact Roadheader Pick Bits High Toughness
Alloy Steel High Impact Roadheader Pick Bits High Toughness
Product Details:
Place of Origin: China
Brand Name: Leno
Certification: CE,ISO, SGS
Model Number: U47
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: negotiable
Packaging Details: Ply wooden box package for ship or air cargo
Delivery Time: 2-3 weeks
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1000 pieces per day
Contact Now
Detailed Product Description
Carbide Head: High-end Tungsten Alloy Alloy Wear-resistant Layer: Imported Tungsten Carbide
Solder And Flux: Imported Copper-based Solder And Flux Pick Body: High-quality 42CrMo Alloy Steel
Alloy Head Hardness: More Than 92HRC Wear-resistant Layer Hardness: More Than 61HRC
Pick Edge Hardness: More Than 50HRC Pick Handle: More Than 45HRC
Alloy Head Impact Toughness: More Than 2800J/cm² Pick Edge Impact Toughness: More Than 59J/cm²
Shear Strength Of Welding Seam: Pick Body And Alloy Head More Than 195Mpa
High Light:

Roadheader Pick Bits


High Toughness Roadheader Pick bits


High Impact Roadheader Pick Base

Plasma Coating Reinforcement Technology No Sparking High Impact High Toughness U47 Series Roadheader Pick Base

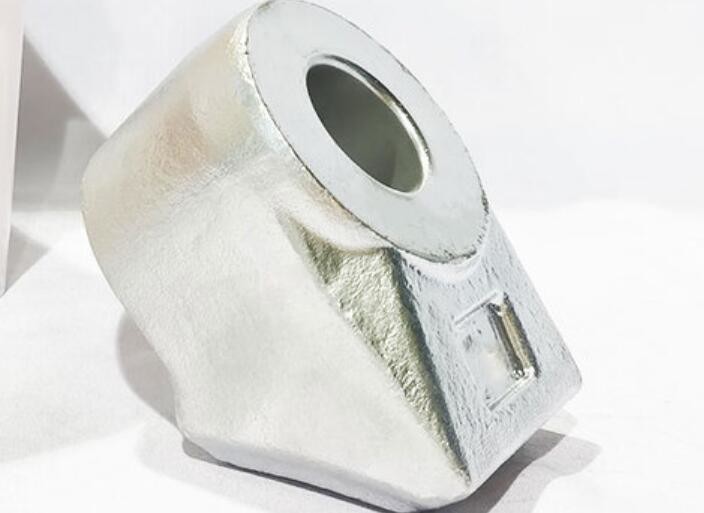

U47 pick base

Used with U47 series picks;

Innovative design to effectively protect the pick;

The surface hardness of the pick base is higher than that of products of the same level;

High-end alloy steel material to ensure excellent performance;

Can be customized according to requirements;

The pick base is used as a supporting tool for the pick, and is installed on the roadheader and shearer together with the accessory pick bushing. During the working process, the pick can bear the external load from coal, rock, inclusions, etc. One of the vulnerable parts of coal falling. The base of LENO U47 picks perfectly matches the U47 picks. The production process is checked layer by layer. The domestic first-line alloy steel material is used to ensure the high quality and high quality of the products. Its surface hardness is higher than that of products of the same level! The surface of the pick base is smooth and flat, without visible cracks, dents, etc., and has been rust-proofed before leaving the factory, so it will not rust for long-term storage.


U47 series roadheader pick (bits)


Carbide head selection range 16mm-29mm;

Supporting roadheader head and coal mining machine;

No sparks, safer;

High strength, fatigue resistance, long life;

Efficient cutting, improve work efficiency;

Suitable for medium-duty conditions and heavy-duty conditions.


The pick of the roadheader is the main cutting on the cutting head of the roadheader. It is installed on the cutter head in cooperation with the pick base and is a vulnerable part of roadway tunneling. The quality of the bits of the roadheader is directly related to the high efficiency of the roadheader operation, power consumption, production capacity, continuity, and functional working life.

LENO Plasma Technology Application Department is a professional manufacturer of high-end picks and rodent traps. The pick production equipment is currently the most advanced welding and quenching integrated production line in China. The production is controlled by the middle level, which ensures the high standard price of LENO picks!

Alloy Steel High Impact Roadheader Pick Bits High Toughness 0

Advantages of LENO U47 series roadheader picks:

Adopt clever design to increase the strength of the product;

Absorb the tungsten carbide wear-resistant layer to further improve the wear resistance of the product and increase the service life of the product;

The standard tooth shoulder design tooth seat provides great protection so that the life of the tooth seat can also be improved;

The products are produced with special materials and manufacturing processes, no sparks are generated during pick cutting, and the production operation is safer;

The surface of the product is clean and smooth, without visible traces, dents, etc. The original anti-rust treatment of the product prevents rust for a long time.

Material used:

Position Material
Carbide head high-end tungsten alloy alloy
Wear-resistant layer Imported tungsten carbide
Solder and flux Imported copper-based solder and flux
Pick body high-quality 42CrMo alloy steel



Technical Parameters:


Item Target Parameters
Surface hardness Alloy head > 92HRC
Wear-resistant layer > 61HRC
Pick edge >50HRC
Pick handle > 45HRC
Impact toughness Alloy head >2800J/cm²
Pick edge ≥59J/cm²
Shear strength of welding seam Pick body and alloy head ≥195MPa



Durable non-sparking picks catalog:


Alloy Steel High Impact Roadheader Pick Bits High Toughness 2

Alloy Steel High Impact Roadheader Pick Bits High Toughness 3

Technical Advantage:

The service life of pick cutters is 1.5~2 times higher than similar products;

Picks are guaranteed to be of imported quality, and the price is much lower than imported

Super-hard rock picks can be used in F10 super-hard rock formations

Tunnel teeth effectively impact 120MPa hard rock roadway/large section tunnel rock formation

Our Service:


1. Quick response, for any of your inquiries, we will reply to you within 24 hours.

2. We offer OEM service. Your logo can be printed on the roadheader picks.

3. We have rich experience in this field, and do R&D work for you.

4. Normal model can be produced within 10 days. Fastest than ever.
