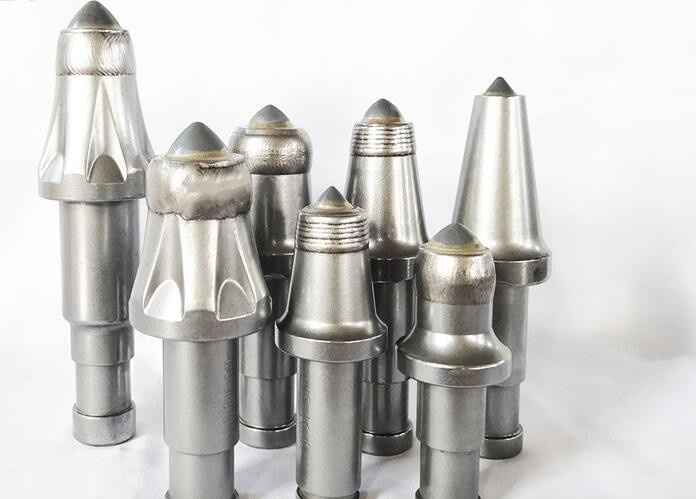

Shearer Carbide Cutting Pick Bits With Copper Based Solder And Flux

Shearer Carbide Cutting Pick Bits With Copper Based Solder And Flux

  • Shearer Carbide Cutting Pick Bits With Copper Based Solder And Flux
  • Shearer Carbide Cutting Pick Bits With Copper Based Solder And Flux
  • Shearer Carbide Cutting Pick Bits With Copper Based Solder And Flux
  • Shearer Carbide Cutting Pick Bits With Copper Based Solder And Flux
Shearer Carbide Cutting Pick Bits With Copper Based Solder And Flux
Product Details:
Place of Origin: China
Brand Name: Leno
Certification: CE,ISO, SGS
Model Number: U82
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Price: negotiable
Packaging Details: Ply wooden box package for ship or air cargo
Delivery Time: 2-3 weeks
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1000 pieces per day
Contact Now
Detailed Product Description
Carbide Head: High-end Tungsten Alloy Alloy Wear-resistant Layer: Imported Tungsten Carbide
Solder And Flux: Imported Copper-based Solder And Flux Pick Body: High-quality 42CrMo Alloy Steel
Alloy Head Hardness: More Than 92HRC Wear-resistant Layer Hardness: More Than 61HRC
Pick Edge Hardness: More Than 50HRC Pick Handle: More Than 45HRC
Alloy Head Impact Toughness: More Than 2800J/cm² Shear Strength Of Welding Seam: Pick Body And Alloy Head More Than 195Mpa
High Light:

Shearer Carbide Cutting Pick Bits

,

SGS Flux Cutting Pick Bits

,

Copper Based Solder Carbide Pick Bits

 Plasma Coating Reinforcement Technology No Sparking High Impact High Toughness U82 Series Shearer Cuting Pick Bits

U82 series shearer pick (bits)



Carbide head selection range 12mm-25mm;

Matching with medium and small power shearer drum for coal drop; Suitable for light working conditions/heavy working conditions

High wear resistance and long service life;

No sparks, safer and high cutting efficiency;

High impact resistance, sample replacement.





The shearer pick is the main cutting tool on the shearer drum. It is installed on the shearer drum in conjunction with the pick base and gear sleeve, and is one of the vulnerable parts of coal falling. The quality of the shearer pick is directly related to the efficiency of the shearer operation, the power consumption, the production capacity, the stability of the work and the service life of the supporting parts.



LENO Plasma Technology Application Department is a professional high-end pick cutter research and development manufacturer, has a strong scientific and technological research and development elite team, and the pick production equipment is currently the most advanced automatic brazing and quenching integrated production line in China. In the production process of picks, each level is checked to ensure the high standards and high quality of LENO picks!



LENO U82  series shearer picks are suitable for small and medium-power shearers. The imported tungsten carbide wear-resistant layer is used to further enhance the wear resistance of the product and increase the service life of the product; using insulating materials, the picks will not produce Sparks make the construction work safer; the standard shoulder width provides great protection for the pick base and gear sleeve; the surface of the product is smooth and flat, without visible cracks, dents, etc., the product is anti-rust treatment before leaving the factory, and it will not rust for long-term storage.

Shearer Carbide Cutting Pick Bits With Copper Based Solder And Flux 0

Advantages of LENO U135series roadheader picks:

Adopt clever design to increase the strength of the product;

Absorb the tungsten carbide wear-resistant layer to further improve the wear resistance of the product and increase the service life of the product;

The standard tooth shoulder design tooth seat provides great protection so that the life of the tooth seat can also be improved;

The products are produced with special materials and manufacturing processes, no sparks are generated during pick cutting, and the production operation is safer;

The surface of the product is clean and smooth, without visible traces, dents, etc. The original anti-rust treatment of the product prevents rust for a long time.

Material used:

Position Material
Carbide head high-end tungsten alloy alloy
Wear-resistant layer Imported tungsten carbide
Solder and flux Imported copper-based solder and flux
Pick body high-quality 42CrMo alloy steel





Technical Parameters:



Item Target Parameters
Surface hardness Alloy head > 92HRC
Wear-resistant layer > 61HRC
Pick edge >50HRC
Pick handle > 45HRC
Impact toughness Alloy head >2800J/cm²
Pick edge ≥59J/cm²
Shear strength of welding seam Pick body and alloy head ≥195MPa





Durable non-sparking picks catalog:

NON SPRKING PICKS CATALOG

Shearer Carbide Cutting Pick Bits With Copper Based Solder And Flux 2

Shearer Carbide Cutting Pick Bits With Copper Based Solder And Flux 3

Technical Advantage:

The service life of pick cutters is 1.5~2 times higher than similar products;

Picks are guaranteed to be of imported quality, and the price is much lower than imported

Super-hard rock picks can be used in F10 super-hard rock formations

Tunnel teeth effectively impact 120MPa hard rock roadway/large section tunnel rock formation

Product Advantage:

Expensive materials:

The cemented carbide we use is made of tungsten carbide and cobalt. Expensive raw materials ensure the best sintering ability and help us make pick tools with high hardness and wear resistance. This pick can withstand a very Strong shock load.

Highly wear-resistant:

Leno leading wear-resistant coating technology allows every pick to have a high degree of wear resistance. In the application, the spin design of the pick will play a huge role in ensuring the uniform wear of the product and extending the life.

Complete categories:

 Wear-resistant pick cutters have a complete range of models and provide cutting solutions for multiple main application fields, multiple complex geological environments, and multiple mining machinery and equipment.

Strict quality control:

From the warehouse body and alloy warehousing to surfacing and heat treatment, to shot blasting, all production steps are optimized to the details and are supervised and controlled.

Hard and resilient:

From the beginning of the storage of tooth bodies and alloys to surfacing and heat treatment, to shot blasting, all production steps are optimized to the details and are supervised and controlled.

Our Service:



1. Quick response, for any of your inquiries, we will reply to you within 24 hours.

2. We offer OEM service. Your logo can be printed on the roadheader picks.

3. We have rich experience in this field, and do R&D work for you.

4. Normal model can be produced within 10 days. Fastest than ever.
