Place of Origin: | QIngdao City, China |
Brand Name: | Leno |
Certification: | CE,ISO, SGS |
Model Number: | ZLJ 1000mm*760mm |
Minimum Order Quantity: | 1 Set |
---|---|
Price: | negotiable |
Packaging Details: | Ply wooden box package for ship or air cargo |
Delivery Time: | 3-4 weeks |
Payment Terms: | Western Union, L/C, T/T |
Supply Ability: | 50 sets per month |
Name: | Conveyor Belt Vulcanizing Equipment | Pressure Creation: | Pressure Bag Type |
---|---|---|---|
Cooling: | Heating Platen Copper Pipe Build-in In Quick Water Or Water Cooling | Heating Method: | Silicone Flexible Heating Element By Electric |
Plug: | Flat | Heating Element: | Flexible Silicone, Light Model |
Power: | 12 Kw | Voltage: | 380 Volt 3 Phase |
Max Pressure: | 1.8 Mpa | Control Monitor: | Automatic Control Box |
Curing Temerature: | 145 Degree | Heating Up Time: | 20 Minute |
High Light: | conveyor belt vulcanising machine,conveyor belt splicing equipment |

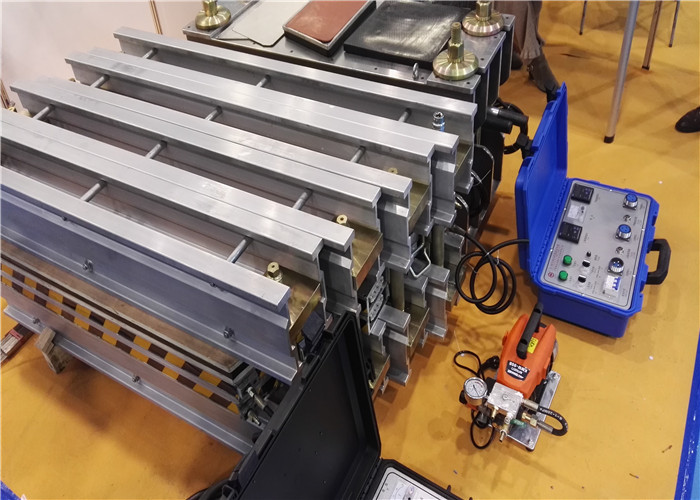

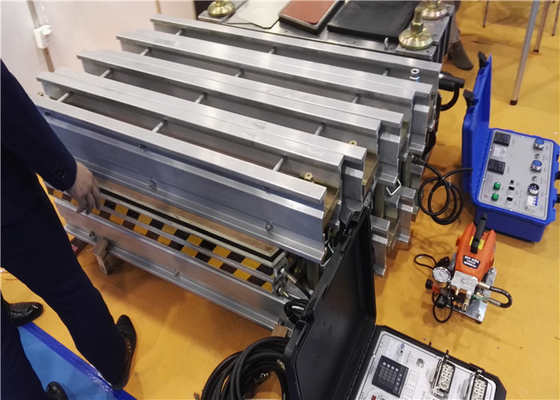

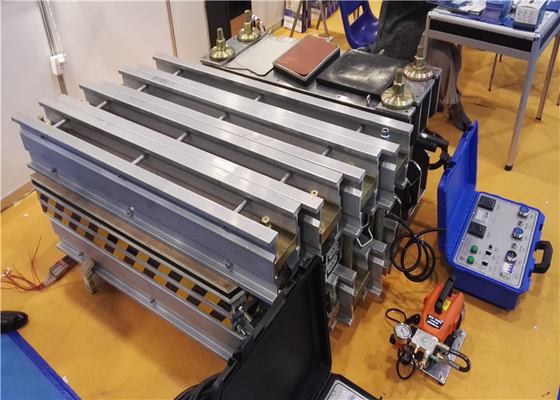

1200mm rectangle pressure bag used conveyor belt splicing equipment with automatic control box working for Thailand
1200mm Rectangle Conveyor Belt Vulcanizing Equipment With Automatic Control Box from Leno Machinery is the world’s most classic heavyweight belt sectional vulcanizing press. Distinguished by the core competencies of Leno technology, the press is designed and assembled with the following components:
(Ⅰ) Machine Feature:
High strength aluminum alloy beams
Flexible Leno rubber “Pressure Bag” uniform pressure system
Classic control box for reliable monitoring
Electronic Pump shorten pressure rising time
Platens can be rectangular or parallelogram and can be connected to other platens for scalability
(Ⅱ)Machine Specification:
1.Voltage: 220V 380V 415V 525V 660V 50HZ/60HZ
2. Quick water cooling device: Average 15 minutes (from 145 ℃ down to 70 ℃ or even lower)
3. Heating time: from room temperature to vulcanization temperature of no more than 25 minutes
4. Vulcanization pressure: 100 PSI, 200PSI and tested by 2.0 Mpa before delivery.
5. Curing temperature: 0 ~ 99min (according to the thickness of the belt to adjust)
6. QL Electric pump
(III) Specifications of Leno Brand Belt Joint Vulcanizing Machine:
A=length of platen along the belt B=width of platen across the belt on the bias C=Right angle dimension across the belt, plus edge overlap. D=Bias angle (0°/18°/20°/22°…..ect) E=Max Splice length |
Specifications of ZLJ series Belt Joint Vulcanizing Machine | D=22 degree | |||||||
Model Number |
Max Belt width(mm) |
Max Splice Length E(mm) |
Press Dimensions | Power (kw) |
Weight(kg) | |||
A(mm) | C(mm) | B(mm) | External dimension (LxWxH)(mm) | |||||
ZLJ-650 | 650 | 500 | 535 | 790 | 870 | 1080x730x630 | 6.1 | 280 |
650 | 670 | 707 | 790 | 870 | 1080x900x630 | 8.2 | 300 | |
650 | 750 | 790 | 790 | 870 | 1080x980x630 | 9.1 | 320 | |
650 | 830 | 872 | 790 | 870 | 1080x1050x630 | 10.1 | 380 | |
650 | 1000 | 1045 | 790 | 870 | 1080x1220x630 | 12.2 | 410 | |
ZLJ-800 | 800 | 500 | 535 | 940 | 1020 | 1280x730x630 | 7.1 | 380 |
800 | 670 | 707 | 940 | 1020 | 1280x900x630 | 9.6 | 410 | |
800 | 750 | 790 | 940 | 1020 | 1280x980x630 | 10.7 | 420 | |
800 | 830 | 872 | 940 | 1020 | 1280x1050x630 | 11.9 | 460 | |
800 | 1000 | 1045 | 940 | 1020 | 1280x1220x630 | 14.3 | 490 | |
ZLJ-1000 | 1000 | 500 | 535 | 1140 | 1220 | 1480x730x630 | 8.5 | 420 |
1000 | 670 | 707 | 1140 | 1220 | 1480x900x630 | 11.4 | 500 | |
1000 | 750 | 790 | 1140 | 1220 | 1480x980x630 | 12.8 | 520 | |
1000 | 830 | 872 | 1140 | 1220 | 1480x1050x630 | 14.2 | 550 | |
1000 | 1000 | 1045 | 1140 | 1220 | 1480x1220x630 | 17.1 | 590 | |
ZLJ-1200 | 1200 | 500 | 535 | 1340 | 1420 | 1680x730x630 | 9.9 | 510 |
1200 | 670 | 707 | 1340 | 1420 | 1680x900x630 | 13.3 | 550 | |
1200 | 750 | 790 | 1340 | 1420 | 1680x980x630 | 14.9 | 590 | |
1200 | 830 | 872 | 1340 | 1420 | 1680x1050x630 | 16.5 | 610 | |
1200 | 1000 | 1045 | 1340 | 1420 | 1680x1220x630 | 19.1 | 650 | |
ZLJ-1600 | 1600 | 500 | 535 | 1740 | 1820 | 2080x730x730 | 12.7 | 830 |
1600 | 670 | 707 | 1740 | 1820 | 2080x900x730 | 17.1 | 880 | |
1600 | 750 | 790 | 1740 | 1820 | 2080x980x730 | 19.1 | 920 | |
1600 | 830 | 872 | 1740 | 1820 | 2080x1050x730 | 21.2 | 940 | |
1600 | 1000 | 1045 | 1740 | 1820 | 2080x1220x730 | 25.5 | 1010 | |
ZLJ-1800 | 1800 | 500 | 535 | 1940 | 2020 | 2280x730x730 | 14.1 | 880 |
1800 | 670 | 707 | 1940 | 2020 | 2280x900x730 | 19.0 | 920 | |
1800 | 750 | 790 | 1940 | 2020 | 2280x980x730 | 21.2 | 950 | |
1800 | 830 | 872 | 1940 | 2020 | 2280x1050x730 | 23.5 | 1050 | |
1800 | 1000 | 1045 | 1940 | 2020 | 2280x1220x730 | 28.3 | 1150 | |
ZLJ-2000 | 2000 | 500 | 535 | 2140 | 2220 | 2480x730x820 | 15.5 | 920 |
2000 | 670 | 707 | 2140 | 2220 | 2480x900x820 | 20.8 | 1060 | |
2000 | 750 | 790 | 2140 | 2220 | 2480x980x820 | 23.3 | 1130 | |
2000 | 830 | 872 | 2140 | 2220 | 2480x1050x820 | 25.8 | 1240 | |
2000 | 1000 | 1045 | 2140 | 2220 | 2480x1220x820 | 31.1 | 1370 | |
ZLJ-2200 | 2200 | 500 | 535 | 2340 | 2420 | 2680x730x820 | 16.9 | 1020 |
2200 | 670 | 707 | 2340 | 2420 | 2680x900x820 | 22.7 | 1190 | |
2200 | 750 | 790 | 2340 | 2420 | 2680x980x820 | 25.4 | 1310 | |
2200 | 830 | 872 | 2340 | 2420 | 2680x1050x820 | 28.1 | 1460 | |
2200 | 1000 | 1045 | 2340 | 2420 | 2680x1220x820 | 33.9 | 1590 |
(IV) Quality assurance:
1. 12 months warranty for whoke machine and spare parts.
2. Using fancy quality parts.
3. Demo running the vulcanizer before delivery, to find out any potential fault.
Our Service:
1. Quick reponse, for any of your inquiry, we will reply you within 24 hour.
2. Our well-tranied college provide sales and after-sale services who can speak English and discuss with you using your local language.
3. We offer OEM service. Your logo can be print on belt hot splicing press, you also can customize the retail box.
(V)Note:
Before place one order, please confirm
Conveyor belt width;
Splice length;
Bias Angle;
Vulcanization pressure.
Voltage
