|Place of Origin:||QIngdao City， China|
|Model Number:||ABOX PRO 60|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Ply wooden box package for ship or air cargo|
|Delivery Time:||3-4 weeks|
|Payment Terms:||Western Union, L/C, T/T|
|Supply Ability:||50 sets per month|
|Pressure FRAME:||A Type High Strength Aluminum Alloy||Pressure Creation:||Aasvp Pressure Bag Type|
|Cooling:||Heating Platen Copper Pipe Build-in In Quick Water Or Water Cooling||Heating Method:||Silicone Flexible Heating Element By Electric|
|Plug:||Harting||Bias Angle:||22 Degree|
|Heating Platen Size:||1560×500||Heating Element:||Flexible Silicone, Light Model|
|Power:||18 Kw||Control Monitor:||Automatic Control Box|
|Curing Temerature:||145 Degree||Heating Up Time:||40 Minute|
220V Belt Vulcanizer Pressure Bag,
SGS Belt Vulcanizer Pressure Bag,
Conveyor Belt Press Pressure Bag
For Belt Splicing Equipment from Leno Machinery is the world’s most classic heavyweight belt sectional vulcanizing press. Distinguished by the core competencies of Leno technology, the press is designed and assembled with the following components:
High-strength aluminum alloy beams
Flexible Leno rubber “Pressure Bag” uniform pressure system
Special designed cooling system build-in platens
Innovative “Silicone Element” fast heating element
Classic control box for reliable monitoring
1.Voltage: 220V 380V 415V 525V 660V 50HZ/60HZ
2. Quick water cooling device: Average 15 minutes (from 145 ℃ down to 70 ℃ or even lower)
3. Heating time: from room temperature to vulcanization temperature of no more than 25 minutes
4. Heating plate surface temperature difference: ± 2.5 ℃
5. The temperature adjustment range: 0 ~ 200 ℃ (custom)

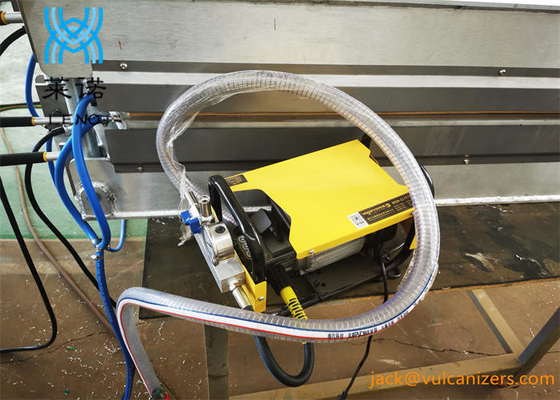

6. QL Electric pump
Technical data correspond to the 16º models. The weight of the lower frame includes the bolts and the pins. The total weight includes the 2 heating plates and the pressure bag.
1. 12 months warranty for the whole machine and spare parts.
2. Using fancy quality parts.
3. Demo running the vulcanizer before delivery, to find out any potential faults.
1. Quick response, for any of your inquiries, we will reply to you within 24 hours.
2. Our well-trained college provides sales and after-sale services who can speak English and discuss with you using your local language.
3. We offer OEM service. Your logo can be printed on a belt hot splicing press, you also can customize the retail box.
4. We have rich experience in this rubber belt hot splice field, and can do R&D work for you.
5. Normal models can be produced within 10 days. Fastest than ever.
Before placing one order, please confirm
Conveyor belt width;
Contact Person: Jack Han
