Steel Plant Vulcanizing Press Machine , Hot Vulcanizing Of Conveyor Belt Heat Pressnation

Steel Plant Vulcanizing Press Machine , Hot Vulcanizing Of Conveyor Belt Heat Pressnation

  • Steel Plant Vulcanizing Press Machine , Hot Vulcanizing Of Conveyor Belt Heat Pressnation
  • Steel Plant Vulcanizing Press Machine , Hot Vulcanizing Of Conveyor Belt Heat Pressnation
  • Steel Plant Vulcanizing Press Machine , Hot Vulcanizing Of Conveyor Belt Heat Pressnation
  • Steel Plant Vulcanizing Press Machine , Hot Vulcanizing Of Conveyor Belt Heat Pressnation
Steel Plant Vulcanizing Press Machine , Hot Vulcanizing Of Conveyor Belt Heat Pressnation
Product Details:
Place of Origin: QIngdao City, China
Brand Name: Leno
Certification: CE,ISO, SGS
Model Number: Komp 1600×600
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: negotiable
Packaging Details: Ply wooden box package for ship or air cargo
Delivery Time: 3-4 weeks
Payment Terms: Western Union, L/C, T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Name: Steel Plant Vulcanizing Press Machine Pressure Creation: Asvp Pressure Bag Type
Cooling: Heating Platen Copper Pipe Build-in In Quick Water Or Water Cooling Heating Method: Silicone Flexible Heating Element By Electric

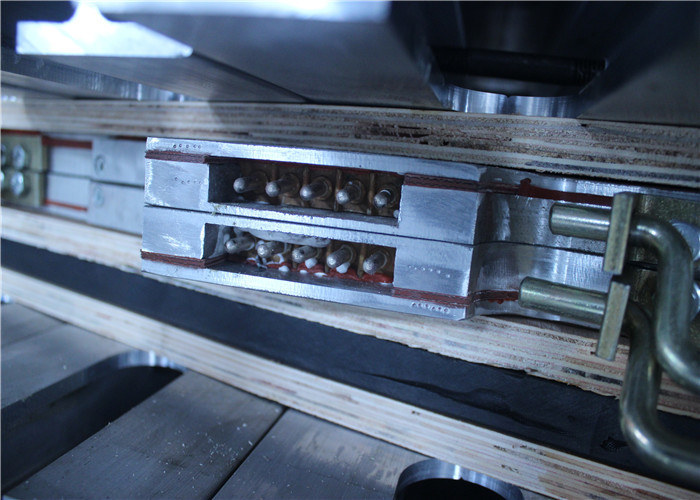

Plug: Harting Bias Angle: 16 Degree
Heating Platen Size: 600mm×7440mm Heating Element: Flexible Silicone, Light Model
Power: 18kw Control Monitor: Automatic Control Box
Curing Temerature: 145 Degree Heating Up Time: 20 Minute
Cooling Time: 15 Minutes
High Light:

automatic vulcanizing machine

,

hot splicing machine

Fonmar Komp 1600×600 Nilos Press pressure bag press conveyor belt vulcanizing machine vu'l'ca'ni'ze'r ply tape tool



Steel Plant Vulcanizing Press Machine , Hot Vulcanizing Of Conveyor Belt Heat Pressnation from Leno Machinery is the world’s most classic heavyweight belt sectional vulcanizing press. Distinguished by the core competencies of Leno technology, the press is designed and assembled with the following components:



(Ⅰ) Machine Feature:



High strength aluminum alloy beams

Flexible Leno rubber “Pressure Bag” uniform pressure system

Special designed cooling system build-in platens

Innovative “Silicone Element” fast heating element

Platens can be rectangular or parallelogram and can be connected to other platens for scalability



(Ⅱ)Machine Specification:



1. Voltage: 220V 380V 415V 525V 660V 50HZ/60HZ

2. Quick water cooling device: Average 15 minutes (from 145 ℃ down to 70 ℃ or even lower)

3. Heating time: from room temperature to vulcanization temperature of no more than 25 minutes

4. The temperature adjustment range: 0 ~ 200 ℃ (custom)

5. Vulcanization pressure: 100 PSI, 200PSI and tested by 2.0 Mpa before delivery.

6. Curing temperature: 0 ~ 99min (according to the thickness of the belt to adjust)

7. QL Electric pump





(III) Specifications of Leno Brand Belt Joint Vulcanizing Machine:



http://mao.ecer.com/photo/belt-vulcanizer/editor/20180913121114_19488.jpg





A=length of platen along the belt

B=width of platen across the belt on the bias

C=Right angle dimension across the belt, plus edge overlap.

D=Bias angle (0°/18°/20°/22°…..ect)

E=Max Splice length



Specifications of ZLJ series Belt Joint Vulcanizing Machine D=22 degree
Model
Number
Max Belt width(mm)

Max Splice Length
Width

E(mm)

Press Dimensions Power
(kw)
Weight(kg)
A(mm) C(mm) B(mm) External dimension (LxWxH)(mm)
ZLJ-650 650 500 535 790 870 1080x730x630 6.1 280
650 670 707 790 870 1080x900x630 8.2 300
650 750 790 790 870 1080x980x630 9.1 320
650 830 872 790 870 1080x1050x630 10.1 380
650 1000 1045 790 870 1080x1220x630 12.2 410
ZLJ-800 800 500 535 940 1020 1280x730x630 7.1 380
800 670 707 940 1020 1280x900x630 9.6 410
800 750 790 940 1020 1280x980x630 10.7 420
800 830 872 940 1020 1280x1050x630 11.9 460
800 1000 1045 940 1020 1280x1220x630 14.3 490
ZLJ-1000 1000 500 535 1140 1220 1480x730x630 8.5 420
1000 670 707 1140 1220 1480x900x630 11.4 500
1000 750 790 1140 1220 1480x980x630 12.8 520
1000 830 872 1140 1220 1480x1050x630 14.2 550
1000 1000 1045 1140 1220 1480x1220x630 17.1 590
ZLJ-1400 1400 500 535 1540 1620 1880x730x730 11.3 690
1400 670 707 1540 1620 1880x900x730 15.2 720
1400 750 790 1540 1620 1880x980x730 17.0 750
1400 830 872 1540 1620 1880x1050x730 18.8 780
1400 1000 1045 1540 1620 1880x1220x730 22.7 850
ZLJ-1600 1600 500 535 1740 1820 2080x730x730 12.7 830
1600 670 707 1740 1820 2080x900x730 17.1 880
1600 750 790 1740 1820 2080x980x730 19.1 920
1600 830 872 1740 1820 2080x1050x730 21.2 940
1600 1000 1045 1740 1820 2080x1220x730 25.5 1010
ZLJ-1800 1800 500 535 1940 2020 2280x730x730 14.1 880
1800 670 707 1940 2020 2280x900x730 19.0 920
1800 750 790 1940 2020 2280x980x730 21.2 950
1800 830 872 1940 2020 2280x1050x730 23.5 1050
1800 1000 1045 1940 2020 2280x1220x730 28.3 1150
ZLJ-2000 2000 500 535 2140 2220 2480x730x820 15.5 920
2000 670 707 2140 2220 2480x900x820 20.8 1060
2000 750 790 2140 2220 2480x980x820 23.3 1130
2000 830 872 2140 2220 2480x1050x820 25.8 1240
2000 1000 1045 2140 2220 2480x1220x820 31.1 1370
ZLJ-2200 2200 500 535 2340 2420 2680x730x820 16.9 1020
2200 670 707 2340 2420 2680x900x820 22.7 1190
2200 750 790 2340 2420 2680x980x820 25.4 1310
2200 830 872 2340 2420 2680x1050x820 28.1 1460
2200 1000 1045 2340 2420 2680x1220x820 33.9 1590





(IV) Quality assurance:



1. 12 months warranty for whoke machine and spare parts.

2. Using fancy quality parts.

3. Demo running the vulcanizer before delivery, to find out any potential fault.



Our Service:



1. Quick reponse, for any of your inquiry, we will reply you within 24 hour.

2. Our well-tranied college provide sales and after-sale services who can speak English and discuss with you using your local language.

3. We offer OEM service. Your logo can be print on belt hot splicing press, you also can customize the retail box.

4. We have rich experience in this rubber belt hot splice firld, and an do R&D work foryou.





(V)Note:

Before place one order, please confirm



Conveyor belt width;

Splice length;

Bias Angle;

Vulcanization pressure.

Voltage
