| Place of Origin: | QIngdao City， China |
| Brand Name: | Leno |
| Certification: | CE，ISO， SGS |
| Model Number: | Aasvp 4068 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Ply wooden box package for ship or air cargo |
| Delivery Time: | 3-4 weeks |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 50 sets per month |
| Name: | Heavy Duty Conveyor Belt Vulcanizing Press | Pressure Creation: | Aasvp Pressure Bag Type |
|---|---|---|---|
| Cooling: | Heating Platen Copper Pipe Build-in In Quick Water Or Water Cooling | Heating Method: | Silicone Flexible Heating Element By Electric |
| Plug: | Harting | Bias Angle: | 22 Degree |
| Heating Platen Size: | 40"×68" | Heating Element: | Flexible Silicone, Light Model |
| Power: | 12 Kw | Control Monitor: | Automatic Control Box |
| Curing Temerature: | 145 Degree | Heating Up Time: | 20 Minute |
| High Light: | conveyor belt hot splicing equipment,belt splicing equipment |
||
Aaasvp 4068 55“ Press pressure bag used conveyor belt vulcanizing machine for splicing fabrics ply tape belting

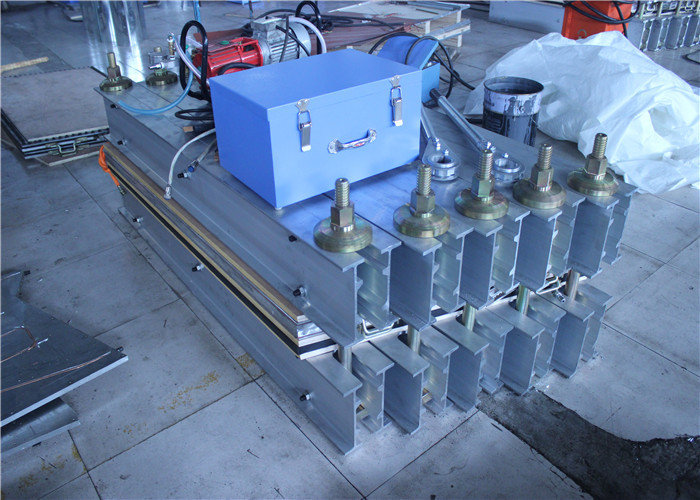

Heavy Duty Conveyor Belt Vulcanizing Press For Splicing Fabrics Ply Tape from Leno Machinery is the world’s most classic heavyweight belt sectional vulcanizing press. Distinguished by the core competencies of Leno technology, the press is designed and assembled with the following components:
(Ⅰ) Machine Feature:
High-strength aluminum alloy beams
Flexible Leno rubber “Pressure Bag” uniform pressure system
Special designed cooling system build-in platens
Innovative “Silicone Element” fast heating element
Classic control box for reliable monitoring
Electronic Pump shortens pressure rising time

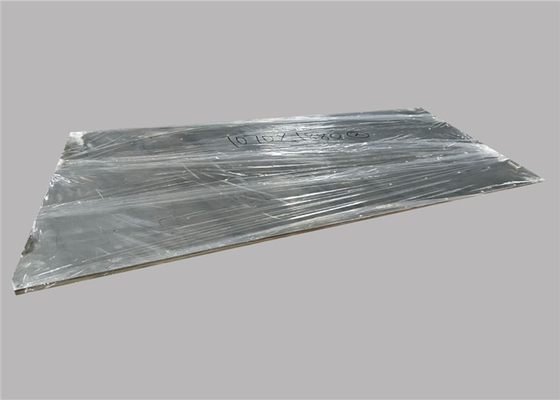

Platens can be rectangular or parallelogram and can be connected to other platens for scalability
(Ⅱ)Machine Specification:
1. Heating plate surface temperature difference: ± 2.5 ℃
2. The temperature adjustment range: 0 ~ 200 ℃ (custom)
3. Vulcanization pressure: 100 PSI, 200PSI and tested by 2.0 Mpa before delivery.
4. Curing temperature: 0 ~ 99min (according to the thickness of the belt to adjust)
5. QL Electric pump
(III) Specifications of Leno Brand Belt Joint Vulcanizing Machine:
 |
A=length of platen along the belt B=width of platen across the belt on the bias C=Right angle dimension across the belt, plus edge overlap. D=Bias angle (0°/18°/20°/22°…..ect) E=Max Splice length |
| Specifications of ZLJ series Belt Joint Vulcanizing Machine | D=22 degree | |||||||
| Model Number |
Max Belt width(mm) |
Max Splice Length E(mm) |
Press Dimensions | Power (kw) |
Weight(kg) | |||
| A(mm) | C(mm) | B(mm) | External dimension (LxWxH)(mm) | |||||
| ZLJ-650 | 650 | 500 | 535 | 790 | 870 | 1080x730x630 | 6.1 | 280 |
| 650 | 670 | 707 | 790 | 870 | 1080x900x630 | 8.2 | 300 | |
| 650 | 750 | 790 | 790 | 870 | 1080x980x630 | 9.1 | 320 | |
| 650 | 830 | 872 | 790 | 870 | 1080x1050x630 | 10.1 | 380 | |
| 650 | 1000 | 1045 | 790 | 870 | 1080x1220x630 | 12.2 | 410 | |
| ZLJ-800 | 800 | 500 | 535 | 940 | 1020 | 1280x730x630 | 7.1 | 380 |
| 800 | 670 | 707 | 940 | 1020 | 1280x900x630 | 9.6 | 410 | |
| 800 | 750 | 790 | 940 | 1020 | 1280x980x630 | 10.7 | 420 | |
| 800 | 830 | 872 | 940 | 1020 | 1280x1050x630 | 11.9 | 460 | |
| 800 | 1000 | 1045 | 940 | 1020 | 1280x1220x630 | 14.3 | 490 | |
| ZLJ-1000 | 1000 | 500 | 535 | 1140 | 1220 | 1480x730x630 | 8.5 | 420 |
| 1000 | 670 | 707 | 1140 | 1220 | 1480x900x630 | 11.4 | 500 | |
| 1000 | 750 | 790 | 1140 | 1220 | 1480x980x630 | 12.8 | 520 | |
| 1000 | 830 | 872 | 1140 | 1220 | 1480x1050x630 | 14.2 | 550 | |
| 1000 | 1000 | 1045 | 1140 | 1220 | 1480x1220x630 | 17.1 | 590 | |
| ZLJ-1200 | 1200 | 500 | 535 | 1340 | 1420 | 1680x730x630 | 9.9 | 510 |
| 1200 | 670 | 707 | 1340 | 1420 | 1680x900x630 | 13.3 | 550 | |
| 1200 | 750 | 790 | 1340 | 1420 | 1680x980x630 | 14.9 | 590 | |
| 1200 | 830 | 872 | 1340 | 1420 | 1680x1050x630 | 16.5 | 610 | |
| 1200 | 1000 | 1045 | 1340 | 1420 | 1680x1220x630 | 19.1 | 650 | |
| ZLJ-1400 | 1400 | 500 | 535 | 1540 | 1620 | 1880x730x730 | 11.3 | 690 |
| 1400 | 670 | 707 | 1540 | 1620 | 1880x900x730 | 15.2 | 720 | |
| 1400 | 750 | 790 | 1540 | 1620 | 1880x980x730 | 17.0 | 750 | |
| 1400 | 830 | 872 | 1540 | 1620 | 1880x1050x730 | 18.8 | 780 | |
| 1400 | 1000 | 1045 | 1540 | 1620 | 1880x1220x730 | 22.7 | 850 | |
| ZLJ-1600 | 1600 | 500 | 535 | 1740 | 1820 | 2080x730x730 | 12.7 | 830 |
| 1600 | 670 | 707 | 1740 | 1820 | 2080x900x730 | 17.1 | 880 | |
| 1600 | 750 | 790 | 1740 | 1820 | 2080x980x730 | 19.1 | 920 | |
| 1600 | 830 | 872 | 1740 | 1820 | 2080x1050x730 | 21.2 | 940 | |
| 1600 | 1000 | 1045 | 1740 | 1820 | 2080x1220x730 | 25.5 | 1010 | |
| ZLJ-1800 | 1800 | 500 | 535 | 1940 | 2020 | 2280x730x730 | 14.1 | 880 |
| 1800 | 670 | 707 | 1940 | 2020 | 2280x900x730 | 19.0 | 920 | |
| 1800 | 750 | 790 | 1940 | 2020 | 2280x980x730 | 21.2 | 950 | |
| 1800 | 830 | 872 | 1940 | 2020 | 2280x1050x730 | 23.5 | 1050 | |
| 1800 | 1000 | 1045 | 1940 | 2020 | 2280x1220x730 | 28.3 | 1150 | |
| ZLJ-2000 | 2000 | 500 | 535 | 2140 | 2220 | 2480x730x820 | 15.5 | 920 |
| 2000 | 670 | 707 | 2140 | 2220 | 2480x900x820 | 20.8 | 1060 | |
| 2000 | 750 | 790 | 2140 | 2220 | 2480x980x820 | 23.3 | 1130 | |
| 2000 | 830 | 872 | 2140 | 2220 | 2480x1050x820 | 25.8 | 1240 | |
| 2000 | 1000 | 1045 | 2140 | 2220 | 2480x1220x820 | 31.1 | 1370 | |
(IV) Quality assurance:
1. 12 months warranty for the whole machine and spare parts.
2. Using fancy quality parts.
3. Demo running the vulcanizer before delivery, to find out any potential faults.
Our Service:
1. Our well-trained college provide sales and after-sale services who can speak English and discuss with you using your local language.
2. We have rich experience in this rubber belt hot splice field, and can do R&D work for you.
3. Normal model can be produced within 10 days. Fastest than ever.
(V)Note:
Before placing one order, please confirm
Conveyor belt width;
Splice length;
Bias Angle;
Vulcanization pressure.
Voltage
