| Place of Origin: | QIngdao City， China |
| Brand Name: | Leno |
| Certification: | CE，ISO， SGS |
| Model Number: | Aasvp 4068 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | negotiable |

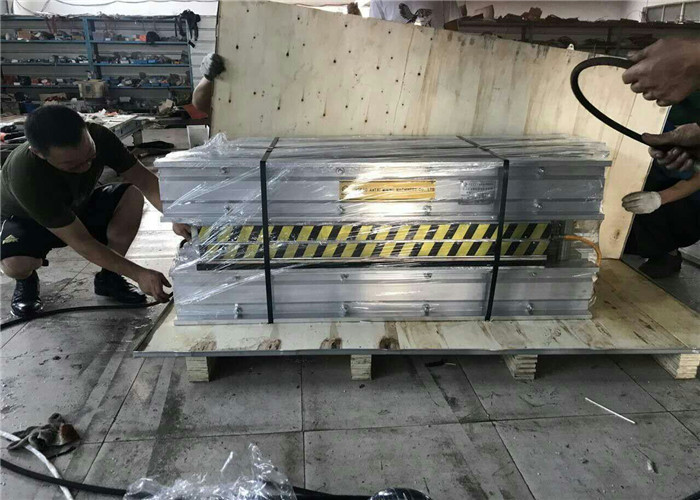

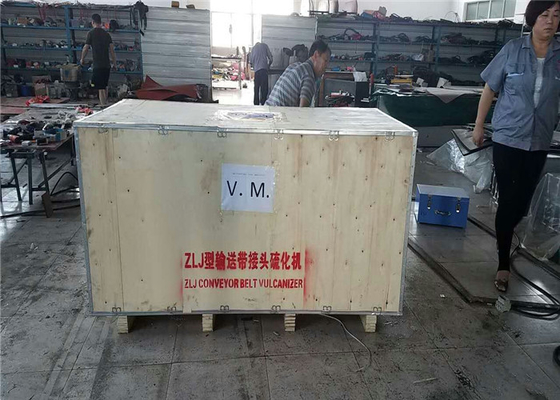

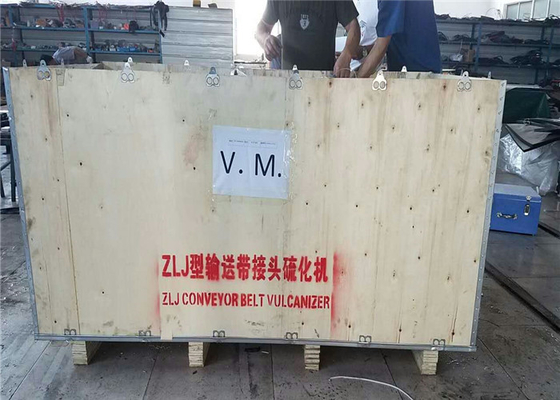

| Packaging Details: | Ply wooden box package for ship or air cargo |
| Delivery Time: | 3-4 weeks |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 50 sets per month |
| Name: | Explosion Proof Rubber Vulcanizing Machine | Pressure Creation: | Aasvp Pressure Bag Type |
|---|---|---|---|
| Cooling: | Heating Platen Copper Pipe Build-in In Quick Water Or Water Cooling | Heating Method: | Silicone Flexible Heating Element By Electric |
| Plug: | Harting | Bias Angle: | 22 Degree |
| Heating Platen Size: | 24"×69" Bias Angle 22 | Heating Element: | Flexible Silicone, Light Model |
| Power: | 18 Kw | Control Monitor: | Automatic Control Box |
| Curing Temerature: | 150 Degree | Heating Up Time: | 20 Minute |
| High Light: | hot vulcanizing machine,rubber vulcanizing equipment |
||
Aaasvp 3065 52“ Press pressure bag portable conveyor belt vulcanizing mac with automatic control box working on site
Explosion Proof Rubber Vulcanizing Machine For Conveyor Belt 0 ~ 200 ℃ Adjustment from Leno Machinery is the world’s most classic heavyweight belt sectional vulcanizing press. Distinguished by the core competencies of Leno technology, the press is designed and assembled with the following components:
(Ⅰ) Machine Feature:
High-strength aluminum alloy beams
Special designed cooling system build-in platens
Classic control box for reliable monitoring
Electronic Pump shortens pressure rising time
Platens can be rectangular or parallelogram and can be connected to other platens for scalability
(Ⅱ)Machine Specification:
1.Voltage: 220V 380V 415V 525V 660V 50HZ/60HZ
2. Quick water cooling device: Average 15 minutes (from 145 ℃ down to 70 ℃ or even lower)
3. Heating time: from room temperature to vulcanization temperature of no more than 25 minutes
4. Vulcanization pressure: 100 PSI, 200PSI, and tested by 2.0 Mpa before delivery.
5. Curing temperature: 0 ~ 99min (according to the thickness of the belt to adjust)
6. QL Electric pump
(III) Specifications of Leno Brand Belt Joint Vulcanizing Machine:
 |
A=length of platen along the belt B=width of platen across the belt on the bias C=Right angle dimension across the belt, plus edge overlap. D=Bias angle (0°/18°/20°/22°…..ect) E=Max Splice length |
| Specifications of ZLJ series Belt Joint Vulcanizing Machine | D=22 degree | |||||||
| Model Number |
Max Belt width(mm) |
Max Splice Length E(mm) |
Press Dimensions | Power (kw) |
Weight(kg) | |||
| A(mm) | C(mm) | B(mm) | External dimension (LxWxH)(mm) | |||||
| ZLJ-650 | 650 | 500 | 535 | 790 | 870 | 1080x730x630 | 6.1 | 280 |
| 650 | 670 | 707 | 790 | 870 | 1080x900x630 | 8.2 | 300 | |
| 650 | 750 | 790 | 790 | 870 | 1080x980x630 | 9.1 | 320 | |
| 650 | 830 | 872 | 790 | 870 | 1080x1050x630 | 10.1 | 380 | |
| 650 | 1000 | 1045 | 790 | 870 | 1080x1220x630 | 12.2 | 410 | |
| ZLJ-800 | 800 | 500 | 535 | 940 | 1020 | 1280x730x630 | 7.1 | 380 |
| 800 | 670 | 707 | 940 | 1020 | 1280x900x630 | 9.6 | 410 | |
| 800 | 750 | 790 | 940 | 1020 | 1280x980x630 | 10.7 | 420 | |
| 800 | 830 | 872 | 940 | 1020 | 1280x1050x630 | 11.9 | 460 | |
| 800 | 1000 | 1045 | 940 | 1020 | 1280x1220x630 | 14.3 | 490 | |
| ZLJ-1000 | 1000 | 500 | 535 | 1140 | 1220 | 1480x730x630 | 8.5 | 420 |
| 1000 | 670 | 707 | 1140 | 1220 | 1480x900x630 | 11.4 | 500 | |
| 1000 | 750 | 790 | 1140 | 1220 | 1480x980x630 | 12.8 | 520 | |
| 1000 | 830 | 872 | 1140 | 1220 | 1480x1050x630 | 14.2 | 550 | |
| 1000 | 1000 | 1045 | 1140 | 1220 | 1480x1220x630 | 17.1 | 590 | |
| ZLJ-1200 | 1200 | 500 | 535 | 1340 | 1420 | 1680x730x630 | 9.9 | 510 |
| 1200 | 670 | 707 | 1340 | 1420 | 1680x900x630 | 13.3 | 550 | |
| 1200 | 750 | 790 | 1340 | 1420 | 1680x980x630 | 14.9 | 590 | |
| 1200 | 830 | 872 | 1340 | 1420 | 1680x1050x630 | 16.5 | 610 | |
| 1200 | 1000 | 1045 | 1340 | 1420 | 1680x1220x630 | 19.1 | 650 | |
| ZLJ-1400 | 1400 | 500 | 535 | 1540 | 1620 | 1880x730x730 | 11.3 | 690 |
| 1400 | 670 | 707 | 1540 | 1620 | 1880x900x730 | 15.2 | 720 | |
| 1400 | 750 | 790 | 1540 | 1620 | 1880x980x730 | 17.0 | 750 | |
| 1400 | 830 | 872 | 1540 | 1620 | 1880x1050x730 | 18.8 | 780 | |
| 1400 | 1000 | 1045 | 1540 | 1620 | 1880x1220x730 | 22.7 | 850 | |
| ZLJ-1600 | 1600 | 500 | 535 | 1740 | 1820 | 2080x730x730 | 12.7 | 830 |
| 1600 | 670 | 707 | 1740 | 1820 | 2080x900x730 | 17.1 | 880 | |
| 1600 | 750 | 790 | 1740 | 1820 | 2080x980x730 | 19.1 | 920 | |
| 1600 | 830 | 872 | 1740 | 1820 | 2080x1050x730 | 21.2 | 940 | |
| 1600 | 1000 | 1045 | 1740 | 1820 | 2080x1220x730 | 25.5 | 1010 | |
| ZLJ-1800 | 1800 | 500 | 535 | 1940 | 2020 | 2280x730x730 | 14.1 | 880 |
| 1800 | 670 | 707 | 1940 | 2020 | 2280x900x730 | 19.0 | 920 | |
| 1800 | 750 | 790 | 1940 | 2020 | 2280x980x730 | 21.2 | 950 | |
| 1800 | 830 | 872 | 1940 | 2020 | 2280x1050x730 | 23.5 | 1050 | |
| 1800 | 1000 | 1045 | 1940 | 2020 | 2280x1220x730 | 28.3 | 1150 | |
| ZLJ-2200 | 2200 | 500 | 535 | 2340 | 2420 | 2680x730x820 | 16.9 | 1020 |
| 2200 | 670 | 707 | 2340 | 2420 | 2680x900x820 | 22.7 | 1190 | |
| 2200 | 750 | 790 | 2340 | 2420 | 2680x980x820 | 25.4 | 1310 | |
| 2200 | 830 | 872 | 2340 | 2420 | 2680x1050x820 | 28.1 | 1460 | |
| 2200 | 1000 | 1045 | 2340 | 2420 | 2680x1220x820 | 33.9 | 1590 | |
(IV) Quality assurance:
1. 12 months warranty for the whole machine and spare parts.
2. Using fancy quality parts.
3. Demo running the vulcanizer before delivery, to find out any potential faults.
Our Service:
1. Our well-trained college provides sales and after-sale services who can speak English and discuss with you using your local language.
2. We have rich experience in this rubber belt hot splice field, and can do R&D work for you.
3. Normal models can be produced within 10 days. Fastest than ever.
(V)Note:
Before placing one order, please confirm
Conveyor belt width;
Splice length;
Bias Angle;
Vulcanization pressure.
Voltage
