Place of Origin: | QIngdao City, China |
Brand Name: | Leno |
Certification: | CE,ISO, SGS |
Model Number: | A asvp 3758 |
Minimum Order Quantity: | 1 Set |
---|---|
Price: | negotiable |
Packaging Details: | Ply wooden box package for ship or air cargo |
Delivery Time: | 3-4 weeks |
Payment Terms: | Western Union, L/C, T/T |
Supply Ability: | 50 sets per month |
Name: | Small Transmission Conveyor Belt Splicing Tools Knife | Pressure Creation: | Asvp Pressure Bag Type |
---|---|---|---|
Cooling: | Heating Platen Copper Pipe Build-in In Quick Water Or Water Cooling | Heating Method: | Silicone Flexible Heating Element By Electric |
Plug: | Harting | Bias Angle: | 22 Degree |
Heating Platen Size: | 33"×58" | Heating Element: | Flexible Silicone, Light Model |
Power: | 16 Kw | Control Monitor: | Automatic Control Box |
Curing Temerature: | 145 Degree | Heating Up Time: | 20 Minute |
High Light: | belt lacing tool,conveyor belt maintenance tools |
Aaasvp 3358 48“ Press pressure bag used conveyor belt vulcanizing machine for splicing fabrics ply tape belting
Small Transmission Conveyor Belt Splicing Tools Knife With Flexible Blade from Leno Machinery is the world’s most classic heavyweight belt sectional vulcanizing press. Distinguished by the core competencies of Leno technology, the press is designed and assembled with the following components:
(Ⅰ) Machine Feature:
High-strength aluminum alloy beams
Flexible Leno rubber “Pressure Bag” uniform pressure system
Special designed cooling system build-in platens
Innovative “Silicone Element” fast heating element

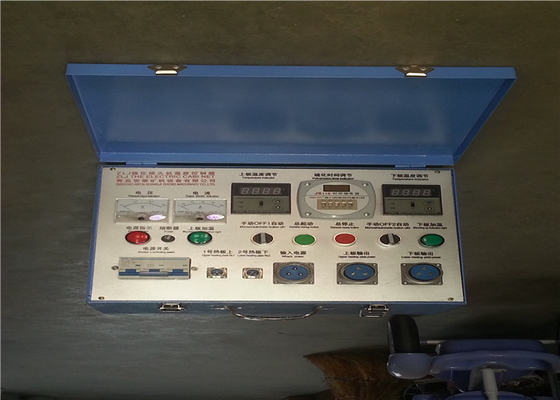

Classic control box for reliable monitoring
Electronic Pump shortens pressure rising time
Platens can be rectangular or parallelogram and can be connected to other platens for scalability
(Ⅱ)Machine Specification:
1.Voltage: 220V 380V 415V 525V 660V 50HZ/60HZ
2. Quick water cooling device: Average 15 minutes (from 145 ℃ down to 70 ℃ or even lower)
3. Heating time: from room temperature to vulcanization temperature of no more than 25 minutes
4. Heating plate surface temperature difference: ± 2.5 ℃
5. QL Electric pump
(III) Specifications of Leno Brand Belt Joint Vulcanizing Machine:
![]() |
A=length of platen along the belt B=width of platen across the belt on the bias C=Right angle dimension across the belt, plus edge overlap. D=Bias angle (0°/18°/20°/22°…..ect) E=Max Splice length |
Specifications of ZLJ series Belt Joint Vulcanizing Machine | D=22 degree | |||||||
Model Number |
Max Belt width(mm) |
Max Splice Length E(mm) |
Press Dimensions | Power (kw) |
Weight(kg) | |||
A(mm) | C(mm) | B(mm) | External dimension (LxWxH)(mm) | |||||
ZLJ-650 | 650 | 500 | 535 | 790 | 870 | 1080x730x630 | 6.1 | 280 |
650 | 670 | 707 | 790 | 870 | 1080x900x630 | 8.2 | 300 | |
650 | 750 | 790 | 790 | 870 | 1080x980x630 | 9.1 | 320 | |
650 | 830 | 872 | 790 | 870 | 1080x1050x630 | 10.1 | 380 | |
650 | 1000 | 1045 | 790 | 870 | 1080x1220x630 | 12.2 | 410 | |
ZLJ-800 | 800 | 500 | 535 | 940 | 1020 | 1280x730x630 | 7.1 | 380 |
800 | 670 | 707 | 940 | 1020 | 1280x900x630 | 9.6 | 410 | |
800 | 750 | 790 | 940 | 1020 | 1280x980x630 | 10.7 | 420 | |
800 | 830 | 872 | 940 | 1020 | 1280x1050x630 | 11.9 | 460 | |
800 | 1000 | 1045 | 940 | 1020 | 1280x1220x630 | 14.3 | 490 | |
ZLJ-1000 | 1000 | 500 | 535 | 1140 | 1220 | 1480x730x630 | 8.5 | 420 |
1000 | 670 | 707 | 1140 | 1220 | 1480x900x630 | 11.4 | 500 | |
1000 | 750 | 790 | 1140 | 1220 | 1480x980x630 | 12.8 | 520 | |
1000 | 830 | 872 | 1140 | 1220 | 1480x1050x630 | 14.2 | 550 | |
1000 | 1000 | 1045 | 1140 | 1220 | 1480x1220x630 | 17.1 | 590 | |
ZLJ-1200 | 1200 | 500 | 535 | 1340 | 1420 | 1680x730x630 | 9.9 | 510 |
1200 | 670 | 707 | 1340 | 1420 | 1680x900x630 | 13.3 | 550 | |
1200 | 750 | 790 | 1340 | 1420 | 1680x980x630 | 14.9 | 590 | |
1200 | 830 | 872 | 1340 | 1420 | 1680x1050x630 | 16.5 | 610 | |
1200 | 1000 | 1045 | 1340 | 1420 | 1680x1220x630 | 19.1 | 650 | |
ZLJ-1400 | 1400 | 500 | 535 | 1540 | 1620 | 1880x730x730 | 11.3 | 690 |
1400 | 670 | 707 | 1540 | 1620 | 1880x900x730 | 15.2 | 720 | |
1400 | 750 | 790 | 1540 | 1620 | 1880x980x730 | 17.0 | 750 | |
1400 | 830 | 872 | 1540 | 1620 | 1880x1050x730 | 18.8 | 780 | |
1400 | 1000 | 1045 | 1540 | 1620 | 1880x1220x730 | 22.7 | 850 | |
ZLJ-1600 | 1600 | 500 | 535 | 1740 | 1820 | 2080x730x730 | 12.7 | 830 |
1600 | 670 | 707 | 1740 | 1820 | 2080x900x730 | 17.1 | 880 | |
1600 | 750 | 790 | 1740 | 1820 | 2080x980x730 | 19.1 | 920 | |
1600 | 830 | 872 | 1740 | 1820 | 2080x1050x730 | 21.2 | 940 | |
1600 | 1000 | 1045 | 1740 | 1820 | 2080x1220x730 | 25.5 | 1010 | |
ZLJ-1800 | 1800 | 500 | 535 | 1940 | 2020 | 2280x730x730 | 14.1 | 880 |
1800 | 670 | 707 | 1940 | 2020 | 2280x900x730 | 19.0 | 920 | |
1800 | 750 | 790 | 1940 | 2020 | 2280x980x730 | 21.2 | 950 | |
1800 | 830 | 872 | 1940 | 2020 | 2280x1050x730 | 23.5 | 1050 | |
1800 | 1000 | 1045 | 1940 | 2020 | 2280x1220x730 | 28.3 | 1150 | |
ZLJ-2000 | 2000 | 500 | 535 | 2140 | 2220 | 2480x730x820 | 15.5 | 920 |
2000 | 670 | 707 | 2140 | 2220 | 2480x900x820 | 20.8 | 1060 | |
2000 | 750 | 790 | 2140 | 2220 | 2480x980x820 | 23.3 | 1130 | |
2000 | 830 | 872 | 2140 | 2220 | 2480x1050x820 | 25.8 | 1240 | |
2000 | 1000 | 1045 | 2140 | 2220 | 2480x1220x820 | 31.1 | 1370 | |
ZLJ-2200 | 2200 | 500 | 535 | 2340 | 2420 | 2680x730x820 | 16.9 | 1020 |
2200 | 670 | 707 | 2340 | 2420 | 2680x900x820 | 22.7 | 1190 | |
2200 | 750 | 790 | 2340 | 2420 | 2680x980x820 | 25.4 | 1310 | |
2200 | 830 | 872 | 2340 | 2420 | 2680x1050x820 | 28.1 | 1460 | |
2200 | 1000 | 1045 | 2340 | 2420 | 2680x1220x820 | 33.9 | 1590 |
(IV) Quality assurance:
1. 12 months warranty for the whole machine and spare parts.
2. Using fancy quality parts.
3. Demo running the vulcanizer before delivery, to find out any potential faults.
Our Service:
1. Our well-trained college provide sales and after-sale services who can speak English and discuss with you using your local language.
2. We have rich experience in this rubber belt hot splice field, and can do R&D work for you.
3. Normal model can be produced within 10 days. Fastest than ever.
(V)Note:
Before placing one order, please confirm
Conveyor belt width;
Splice length;
Bias Angle;
Vulcanization pressure.
Voltage
