1600mm Rubber Conveyor Belt Vulcanizing Machine With Aluminum Alloy Beams

1600mm Rubber Conveyor Belt Vulcanizing Machine With Aluminum Alloy Beams

    • 1600mm Rubber Conveyor Belt Vulcanizing Machine With Aluminum Alloy Beams
    • 1600mm Rubber Conveyor Belt Vulcanizing Machine With Aluminum Alloy Beams
    • 1600mm Rubber Conveyor Belt Vulcanizing Machine With Aluminum Alloy Beams
    • 1600mm Rubber Conveyor Belt Vulcanizing Machine With Aluminum Alloy Beams
  • 1600mm Rubber Conveyor Belt Vulcanizing Machine With Aluminum Alloy Beams

    Product Details:

    Place of Origin: QIngdao City, China
    Brand Name: Leno
    Certification: CE,ISO, SGS
    Model Number: ZLJ 1600mm*830mm

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: negotiable
    Packaging Details: Ply wooden box package for ship or air cargo
    Delivery Time: 3-4 weeks
    Payment Terms: Western Union, L/C, T/T
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Name: Rubber Conveyor Belt Vulcanizing Machine Pressure Creation: Pressure Bag Type
    Cooling: Heating Platen Copper Pipe Build-in In Quick Water Or Water Cooling Heating Method: Silicone Flexible Heating Element By Electric
    Plug: Flat Bias Angle: 22 Degree
    Heating Platen Size: 900mm×2200mm Heating Element: Flexible Silicone, Light Model
    Power: 17 Kw Voltage: 525 Volt 3 Phase
    Max Pressure: 1.4 Mpa Control Monitor: Automatic Control Box

    1600mm wooden box package used conveyor belt joint machine prensa vulcanizadora para cinta transportadora de

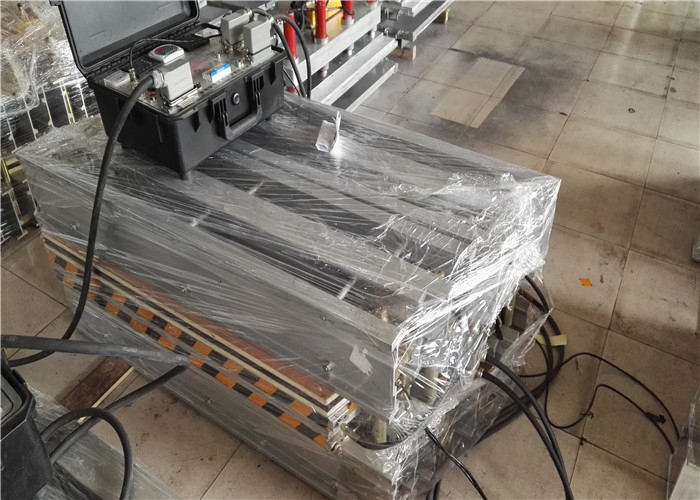

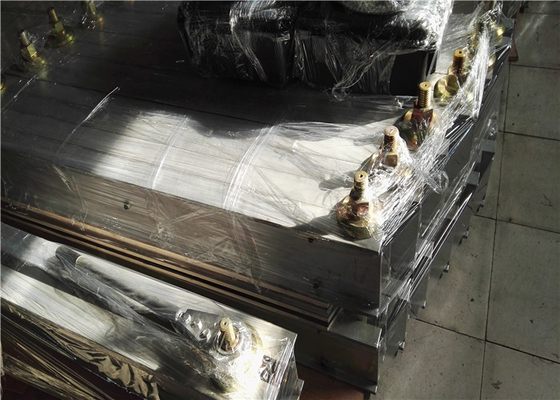

    1600mm Rubber Conveyor Belt Vulcanizing Machine With Aluminum Alloy Beams from Leno Machinery is the world’s most classic heavyweight belt sectional vulcanizing press. Distinguished by the core competencies of Leno technology, the press is designed and assembled with the following components:



    (Ⅰ) Machine Feature:

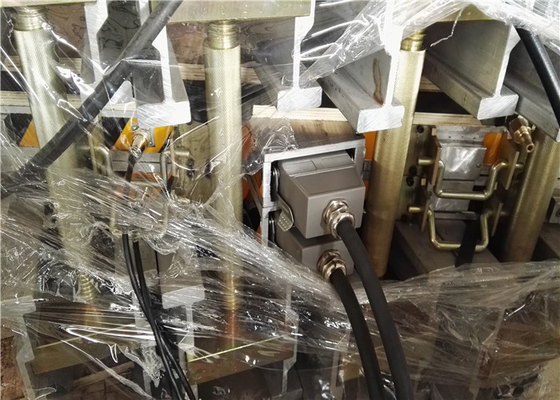

    High strength aluminum alloy beams

    Flexible Leno rubber “Pressure Bag” uniform pressure system

    Special designed cooling system build-in platens

    Innovative “Silicone Element” fast heating element

    Platens can be rectangular or parallelogram and can be connected to other platens for scalability



    (Ⅱ)Machine Specification:



    1. Voltage: 220V 380V 415V 525V 660V 50HZ/60HZ

    2. The temperature adjustment range: 0 ~ 200 ℃ (custom)

    3. Vulcanization pressure: 100 PSI, 200PSI and tested by 2.0 Mpa before delivery.

    4. Curing temperature: 0 ~ 99min (according to the thickness of the belt to adjust)

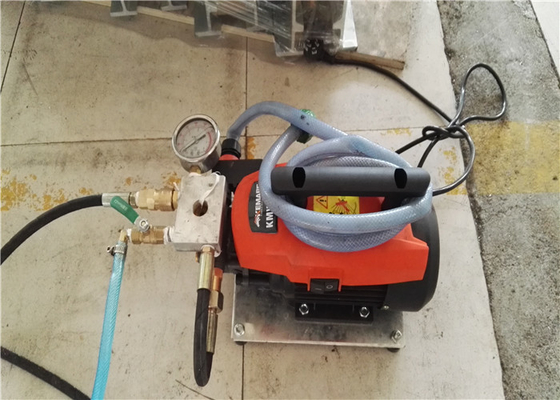

    5. QL Electric pump





    (III) Specifications of Leno Brand Belt Joint Vulcanizing Machine:



    http://mao.ecer.com/photo/belt-vulcanizer/editor/20180913121114_19488.jpg





    A=length of platen along the belt

    B=width of platen across the belt on the bias

    C=Right angle dimension across the belt, plus edge overlap.

    D=Bias angle (0°/18°/20°/22°…..ect)

    E=Max Splice length



    Specifications of ZLJ series Belt Joint Vulcanizing Machine D=22 degree
    Model
    Number
    Max Belt width(mm)

    Max Splice Length
    Width

    E(mm)

    Press Dimensions Power
    (kw)
    Weight(kg)
    A(mm) C(mm) B(mm) External dimension (LxWxH)(mm)
    ZLJ-650 650 500 535 790 870 1080x730x630 6.1 280
    650 670 707 790 870 1080x900x630 8.2 300
    650 750 790 790 870 1080x980x630 9.1 320
    650 830 872 790 870 1080x1050x630 10.1 380
    650 1000 1045 790 870 1080x1220x630 12.2 410
    ZLJ-800 800 500 535 940 1020 1280x730x630 7.1 380
    800 670 707 940 1020 1280x900x630 9.6 410
    800 750 790 940 1020 1280x980x630 10.7 420
    800 830 872 940 1020 1280x1050x630 11.9 460
    800 1000 1045 940 1020 1280x1220x630 14.3 490
    ZLJ-1000 1000 500 535 1140 1220 1480x730x630 8.5 420
    1000 670 707 1140 1220 1480x900x630 11.4 500
    1000 750 790 1140 1220 1480x980x630 12.8 520
    1000 830 872 1140 1220 1480x1050x630 14.2 550
    1000 1000 1045 1140 1220 1480x1220x630 17.1 590
    ZLJ-1200 1200 500 535 1340 1420 1680x730x630 9.9 510
    1200 670 707 1340 1420 1680x900x630 13.3 550
    1200 750 790 1340 1420 1680x980x630 14.9 590
    1200 830 872 1340 1420 1680x1050x630 16.5 610
    1200 1000 1045 1340 1420 1680x1220x630 19.1 650
    ZLJ-1400 1400 500 535 1540 1620 1880x730x730 11.3 690
    1400 670 707 1540 1620 1880x900x730 15.2 720
    1400 750 790 1540 1620 1880x980x730 17.0 750
    1400 830 872 1540 1620 1880x1050x730 18.8 780
    1400 1000 1045 1540 1620 1880x1220x730 22.7 850
    ZLJ-1600 1600 500 535 1740 1820 2080x730x730 12.7 830
    1600 670 707 1740 1820 2080x900x730 17.1 880
    1600 750 790 1740 1820 2080x980x730 19.1 920
    1600 830 872 1740 1820 2080x1050x730 21.2 940
    1600 1000 1045 1740 1820 2080x1220x730 25.5 1010
    ZLJ-1800 1800 500 535 1940 2020 2280x730x730 14.1 880
    1800 670 707 1940 2020 2280x900x730 19.0 920
    1800 750 790 1940 2020 2280x980x730 21.2 950
    1800 830 872 1940 2020 2280x1050x730 23.5 1050
    1800 1000 1045 1940 2020 2280x1220x730 28.3 1150
    ZLJ-2000 2000 500 535 2140 2220 2480x730x820 15.5 920
    2000 670 707 2140 2220 2480x900x820 20.8 1060
    2000 750 790 2140 2220 2480x980x820 23.3 1130
    2000 830 872 2140 2220 2480x1050x820 25.8 1240
    2000 1000 1045 2140 2220 2480x1220x820 31.1 1370





    (IV) Quality assurance:



    1. 12 months warranty for whoke machine and spare parts.

    2. Using fancy quality parts.

    3. Demo running the vulcanizer before delivery, to find out any potential fault.



    Our Service:



    1. Quick reponse, for any of your inquiry, we will reply you within 24 hour.

    2. Our well-tranied college provide sales and after-sale services who can speak English and discuss with you using your local language.

    3. We offer OEM service. Your logo can be print on belt hot splicing press, you also can customize the retail box.

    4. We have rich experience in this rubber belt hot splice firld, and an do R&D work foryou.

    5. Normal model can be produced within 10 day. Fastest than ever.







    (V)Note:

    Before place one order, please confirm



    Conveyor belt width;

    Splice length;

    Bias Angle;

    Vulcanization pressure.

    Voltage
