Rubber Belt Vulcanizer Pressure Bag For Spain Brand Conveyor Belt Vulcanizing

Rubber Belt Vulcanizer Pressure Bag For Spain Brand Conveyor Belt Vulcanizing

    • Rubber Belt Vulcanizer Pressure Bag For Spain Brand Conveyor Belt Vulcanizing
    • Rubber Belt Vulcanizer Pressure Bag For Spain Brand Conveyor Belt Vulcanizing
    • Rubber Belt Vulcanizer Pressure Bag For Spain Brand Conveyor Belt Vulcanizing
    • Rubber Belt Vulcanizer Pressure Bag For Spain Brand Conveyor Belt Vulcanizing
  • Rubber Belt Vulcanizer Pressure Bag For Spain Brand Conveyor Belt Vulcanizing

    Product Details:

    Place of Origin: China
    Brand Name: LENO
    Certification: CE
    Model Number: Komp 1200×600

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotiable
    Packaging Details: Wood box for air cargo or shipping
    Delivery Time: 2-3 week
    Payment Terms: Western Union, MoneyGram, L/C, T/T
    Supply Ability: 300 piece per month
    Contact Now
    Detailed Product Description
    Main Material: Rubebr Color: Balck
    Size: As Customer Request Pressure Type: Water Or Air

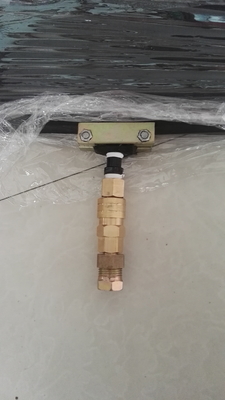

    Inlet: Quick Connection

    Rubber pressure bag for Spain brand conveyor belt vulcanizing / spare parts



    The invitation of pressure bag makes has the ability to supply key spare parts for Europe and North American brand owner. It can save 75% weight of the traditional pressure platen.

    It is good news as we can save 60% cost than before.



    Feature:

    1. High pressure : All the pressure bag will be tested under 2.5 Mpa before delivery;
      2.Custom angle: All the shape used on press is available, Rectangle, 16 degree, 20 degree. 22 degree ;
      3. Larger size: Althougn we can use combined pressure bag to gain a large splice area, while one complete pressure is some kind better than combined ones;

    fonmar komp pressure bag size



    The usually be used size for European

    A=Length of platen along the belt;

    H=Width of platen across the belt on the bias;

    D= Bias angle;

    Model Komp Belt Width (mm) A (mm) B(mm) H(mm) D
    650×350 650 780 350 364 16°
    800×350 800 940 350 364 16°
    1000×350 1000 1145 350 364 16°
    1200×350 1200 1355 350 364 16°
    1400×350 1400 1560 350 364 16°
    1600×350 1600 1770 350 364 16°
    650×500 650 780 500 520 16°
    800×500 800 940 500 520 16°
    1000×500 1000 1145 500 520 16°
    1200×500 1200 1355 500 520 16°
    1400×500 1400 1560 500 520 16°
    1600×500 1600 1770 500 520 16°
    650×600 650 780 600 624 16°
    800×600 800 940 600 624 16°
    1000×600 1000 1145 600 624 16°
    1200×600 1200 1355 600 624 16°
    1400×600 1400 1560 600 624 16°
    1600×600 1600 1770 600 624 16°
    1000×700 1000 1145 700 728 16°
    1200×700 1200 1355 700 728 16°
    1400×700 1400 1560 700   16°



    Note: other size and bias angel can be custom as request.
