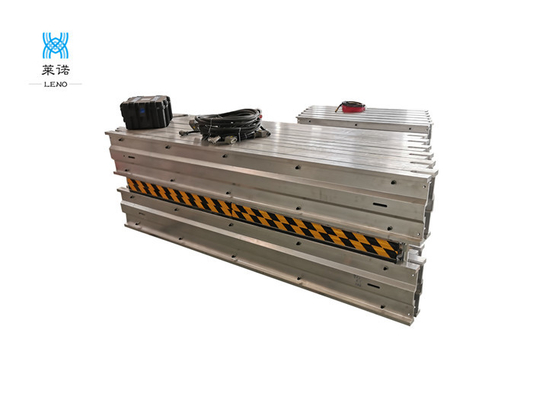

Water Cooling Rubber Conveyor Belt Vulcanizer For Industrial Belt

Water Cooling Rubber Conveyor Belt Vulcanizer For Industrial Belt

  • Water Cooling Rubber Conveyor Belt Vulcanizer For Industrial Belt
  • Water Cooling Rubber Conveyor Belt Vulcanizer For Industrial Belt
  • Water Cooling Rubber Conveyor Belt Vulcanizer For Industrial Belt
  • Water Cooling Rubber Conveyor Belt Vulcanizer For Industrial Belt
Water Cooling Rubber Conveyor Belt Vulcanizer For Industrial Belt
Product Details:
Place of Origin: QIngdao City, China
Brand Name: Leno
Certification: CE,ISO, SGS
Model Number: Aasvp 1600
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: negotiable
Packaging Details: Ply wooden box package for ship or air cargo
Delivery Time: 3-4 weeks
Payment Terms: Western Union, L/C, T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Name: Conveyor Belt Vulcanizer Pressure Creation: Pressure Bag Type
Cooling: Heating Platen Build-in In Quick Water Or Water Cooling Heating Method: Silicone Flexible Heating Element By Electric
Plug: Harting Bias Angle: 16° Or As Request
Heating Platen Size: 1000mm×1420mm, Bias Angel 16 Degree Heating Element: Flexible Silicone
Power: 16 Kw Voltage: 380 Volt 3 Phase
Max Pressure: 1.8 Mpa Control Monitor: Automatic Control Box
High Light:

Rubber Conveyor Belt Vulcanizer

,

Water Cooling Conveyor Belt Vulcanizer

,

Aasvp 1600 Conveyor Belt Vulcanizer

High Accuracy Conveyor Belt Joint Machine Energy Saving Convenient Usage





Structure: Horizontal
Key Selling Points: High-accuracy
Warranty: 2 Years
Power(W): 3KW
Place Of Origin: JiangSu'China
Add Request: Quick Water Cooling System
Application: Rubber Belt Splicing And Repair
Keywords: Air Cooling Conveyor Belt Press Machine
Our Techincial: Own Professional Design
Our Product: Rubber Machine
Automatic Grade:

Full-automatic



specifications:

series belt vulcanizing machine (hereinafter referred to as vulcanizer) is an electrothermal type vulcanizing device used for on-site bonding of conveyor belts. With the advantages of advanced technology, compact structure and convenient usage, it's used for the vulcanized bonding of the belts mixed with canvas, nylon, steel cord, etc., and it's also suitable for the flame retarded, corrosion proof and other special belts. The application area of this kind of vulcanizer is very wide, it can be used in metallurgy, mining, power plant, port and wharf, building material factory, chemical factory and so on.

conveyor belt vulcanizing machine is for rubber conveyor belt hot vulcanizing splice joint.

Conveyor belt vulcanizing machine

Conveyor belt vulcanizing machine is for conveyor belt hot vulcanizing joint, widely used in the field of jointing of canvas, nylon,



steel cord conveyer belt at spot in metallurgy, mining, power plants, ports, building materials, chemical industry, etc

1. Power Voltage: 380V. 660V. 480V. 440V. 415V. 400V or 220V

2. Vulcanizing pressure: 0.6~1.2 MPa (6~12kg / cm2) (Determined by detailed rubber belts) Other vulcanizing pressure can also be available at negotiated price.

3. Vulcanizing temperature: 145°C (adjustable 0~200°C)

4. Temperature-rising time (from normal temperature to vulcanizing temperature): no more than 35 min 5.Time of heat preservation for vulcanizing could be adjusted according to thickness of rubber belt;

Project/Data/Model

Adhesive tape

width
(mm)

specification

Heating plate size

Length × width
(mm)

Total power
(kw)
Heavy weight
(kg)

Dimensions

Length × width × height
(mm)

total weight
(kg)
Configuring device
Manual pump Electric control box

TXCK-650

DJSL/DGLJL-650

650 650×830 830×820 9.8 56 1320×830×585 398 1 1
650×1000 1000×820 11.8 66 1320×1000×585 460 1 1

TXCK-800

DJSL/DGLJL-800

800 800×830 830×995 11.89 70 1450×830×585 485 1 1
800×1000 1000×995 14.4 79 1450×1000×585 550 1 1

TXCK-1000

DJSL/DGLJL-1000

1000 1000×830 830×1228 14.7 82 1700×830×585 556 1 1
1000×1000 1000×1228 17.8 95 1700×1000×585 596 1 1

TXCK-1200

DJSL/DGLJL-1200

1200 1200×830 830×1431 17.2 96 1950×830×750 784 1 1
1200×1000 1000×1431 20.7 113 1950×1000×750 900 1 1

TXCK-1400

DJSL/DGLJL-1400

1400 1400×830 830×1653 19.8 107 2150×830×900 857 1 1
1400×1000 1000×1653 23.9 132 2150×1000×900 1080 1 1

TXCK-1600

DJSL/DGLJL-1600

1600 1600×830 830×1867 22.3 120 2380×830×900 1102 1 1
1600×1000 1000×1867 27 146 2380×1000×900 1400 1 1

TXCK-1800

DJSL/DGLJL-1800

1800 1800×830 830×2079 24.9 137 2620×830×900 1247 1 1
1800×1000 1000×2079 30.. 164 2620×1000×900 1500 1 1

TXCK-2000

DJSL/DGLJL-2000

2000 2000×830 830×2303 27.6 154 2830×830×900 1385 1 1
2000×1000 1000×2303 33.2 182 2830×1000×900 1750 1 1

TXCK-2200

DJSL/DGLJL-2200

2200 2200×830 830×2478 29.7 165 2997×830×900 1446 1 1
2200×1000 1000×2478 35.8 198 2997×1000×900 1800 1 1
